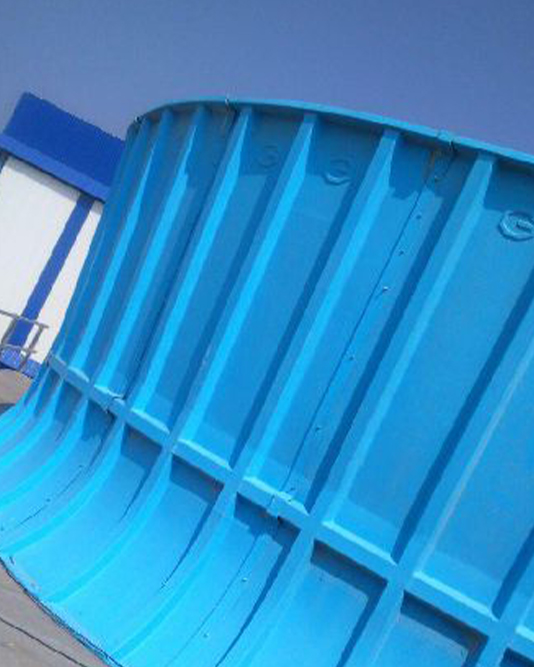

Cooling Tower Fan Cylinder / Stack with Recovery Cone
A cooling tower fan stack is often referred to as a cooling tower fan shroud or a cooling tower fan cylinder. The fiber-reinforced plastic (FRP) Fan Stack is an important part of the cooling tower system. In the cooling tower industry, a "fan stack" includes three key parts that guide airflow.
- Fan bell (or bell inlet): This is the air inlet where air enters the system.
- Fan casing: Also called the fan cylinder, fan shroud, or fan ring, this is the part where the fans operate.
- A velocity recovery cone is the third component of the stack. A conical divergence at the fan exit, also known as a fan diffuser, was employed to recover velocity pressure.
For an optimum fan performance, the fan stack must have dimensional stability for a perfect fan-tip clearance, proper smooth air intake and at the exhaust side a flare of 7-8 deg. The fan stacks we manufacture are of 8-degree flare diffuser type with elliptical or parabolic air inlet. Fans Stacks are taken up for manufacturing after approval of drawings by client, we use best materials unsaturated polyester and fiber CSM. The fan stack thickness, dimensional stability and weight per segment are maintained throughout the manufacturing process.
Size Range:
- 3 feet to 10 feet (900 mm to 3000 mm)
- 10 feet to 18 feet (3000 mm to 5500 mm)
- 18 feet to 24 feet (5500 mm to 7300 mm)
- 24 feet to 34 feet (7300 mm to 10,400 mm)
Height Range:
- 600 to 1500
- 800 to 2500
- 2500 to 4200
- 4200 and above
Accent Cooling Tower Fan Cylinder
Accent Cooling Tower specializes in manufacturing high performance fan cylinders designed to maximize cooling tower efficiency and minimize operating costs. Our fan stacks, made from premium fiberglass-reinforced plastic (FRP), offer superior durability and performance.
With Recovery Cone
Our fan cylinders have a Recovery Cone to improve airflow and save energy. The Recovery Cone provide many benefits that boost system efficiency and performance like helps the system work better and use energy more efficiently. It lowers energy waste from exit air at atmospheric pressure and turns dynamic pressure into static pressure for smoother operation. Its cone shape improves airflow, reduces energy loss, and makes the system more reliable and cost-effective.
Salient features
- It improves fan performance.
- It lowers the noise level near the fan system.
- Due to external air disturbance, the stack stops the fan from running backwards.
- The fan’s airflow is smoothed out by the inlet bell.
- The vena contract at the fan inlet is similarly restricted by the Inlet bell.
- The fan stack also reduces recirculation of discharge air.
If you are seeking a Cooling Tower Fan Cylinder with Recovery Cone Manufacturer, Supplier, and Exporter in Mumbai, Accent Cooling Tower Fan Cylinders are the perfect choice. We offer high-quality products at competitive prices across Mumbai, India and Globally.
